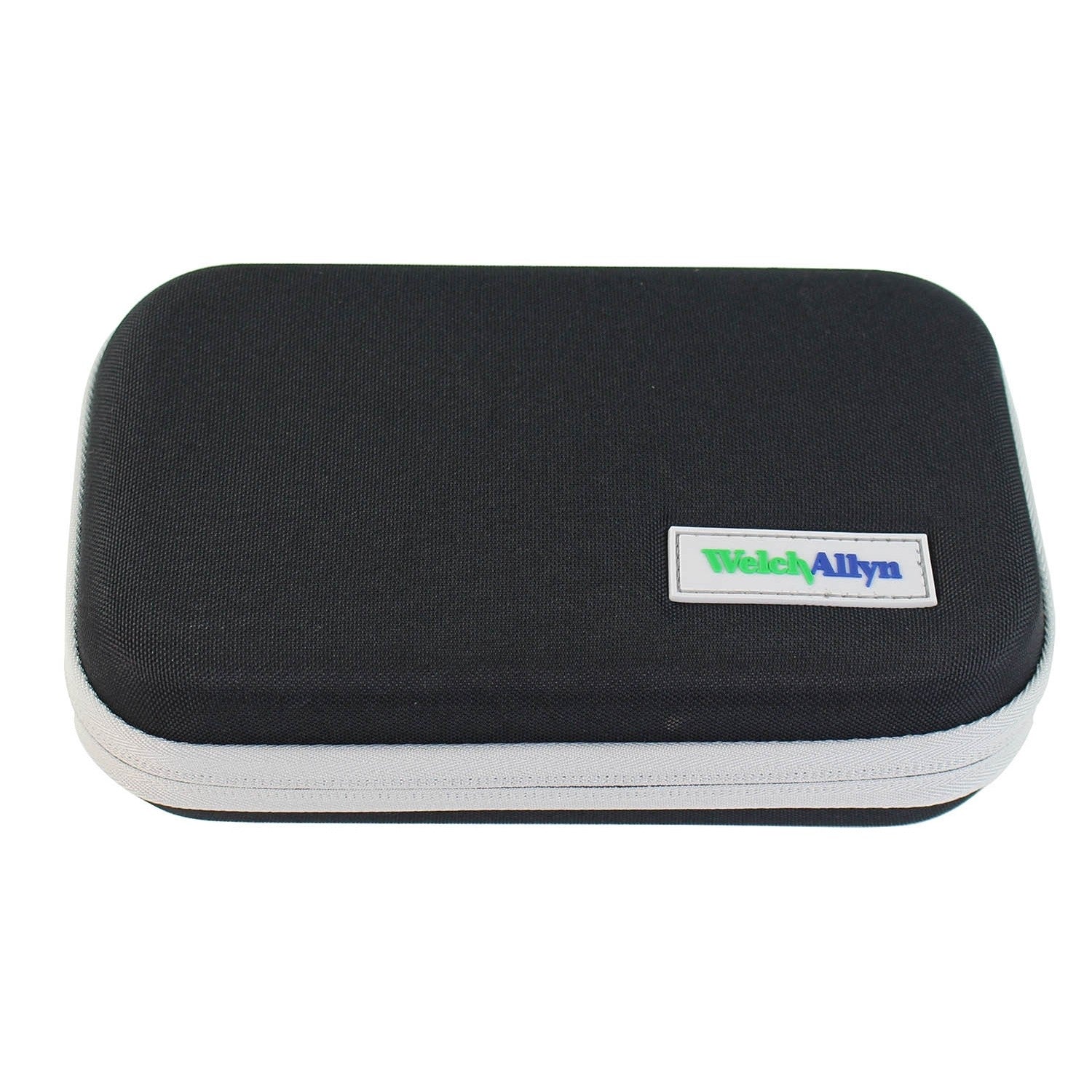

Welch Allyn 92830 PocketScope Diagnostic Set in Hard Case

Welch Allyn 92830 PocketScope Diagnostic Set in Hard Case

Regular price £215.99
Regular price £0.00 Sale price £215.99
Sale Sold out
Engraving

Excellent Welch Allyn performance in a smaller package.


The set consists of:

  • 1x Fibre Optic halogen pocket otoscope.
  • 1x Halogen pocket ophthalmoscope.
  • 1x AA battery powered handle.
  • 1x Soft zippered carry pouch.

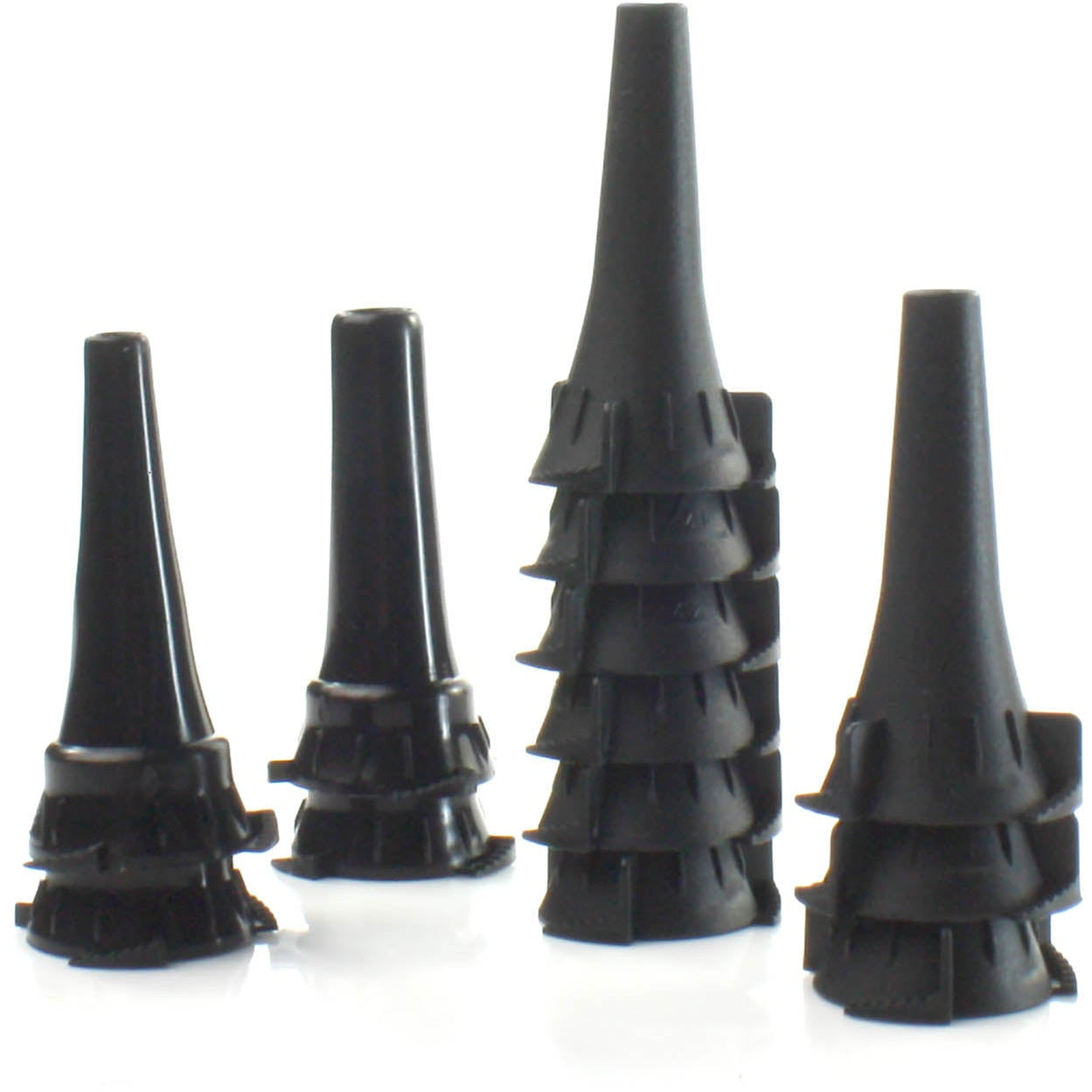

  • Includes 3 LumiView adult-sized specula & 2 pediatric-sized specula.

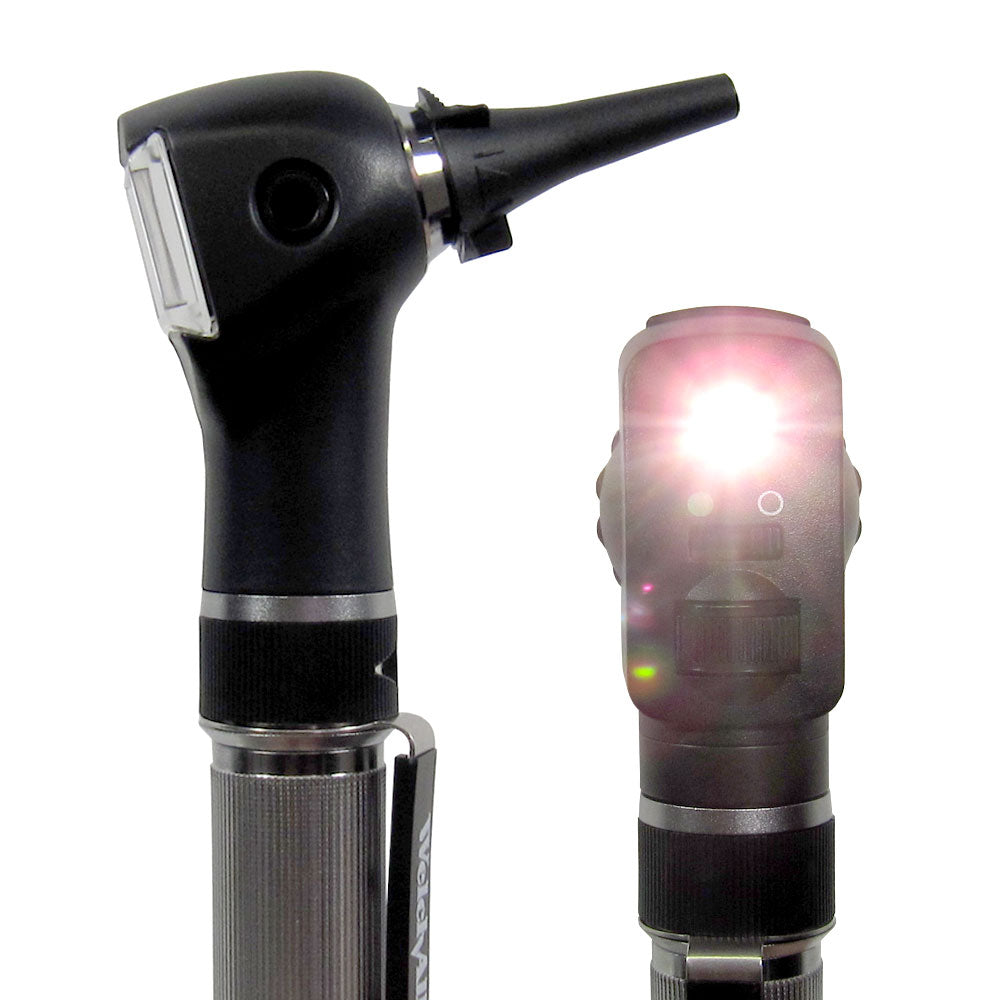

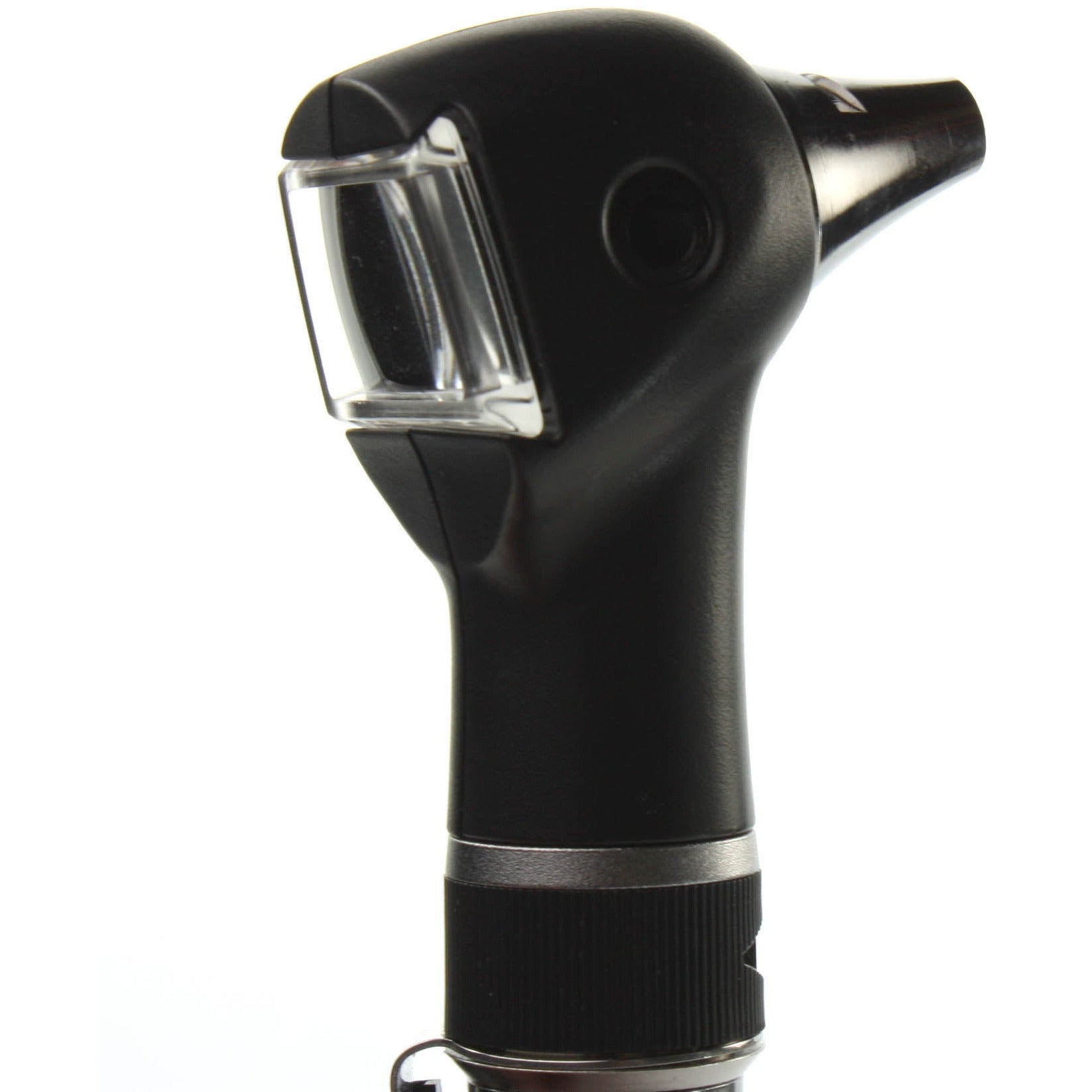

Fibre Optic Halogen Pocket Otoscope

  • Rectangular viewing lense for instrumentation under magnification.
  • Fibre optics produce a ring of even light for an unobstructed, glare-free view.
  • Bright white halogen light for a cool light with no reflections of obstructions.
  • Insufflation port for manipulation of the tympanic membrane (bulb not included)
  • Handle powered by 2 regular AA alkaline batteries.
  • Variable illumination strength via the handle rheostat dial.
welch allyn pocketscope with clear direct fibre-optic light
Clear direct view

360° ring of FO light allows a completely unobstructed view.
welch allyn pocketscope with rheostat control
Rheostat Control

Vary the power of illumination with the smooth turn of a dial.
welch allyn pocketscope with sliding optics for easy cleaning
Sliding Optics

Allows easy access for cleaning.

welch allyn pocketscope with insufflation port for pneumatic otoscopy
Insufflation port

For optional pneumatic otoscopy.

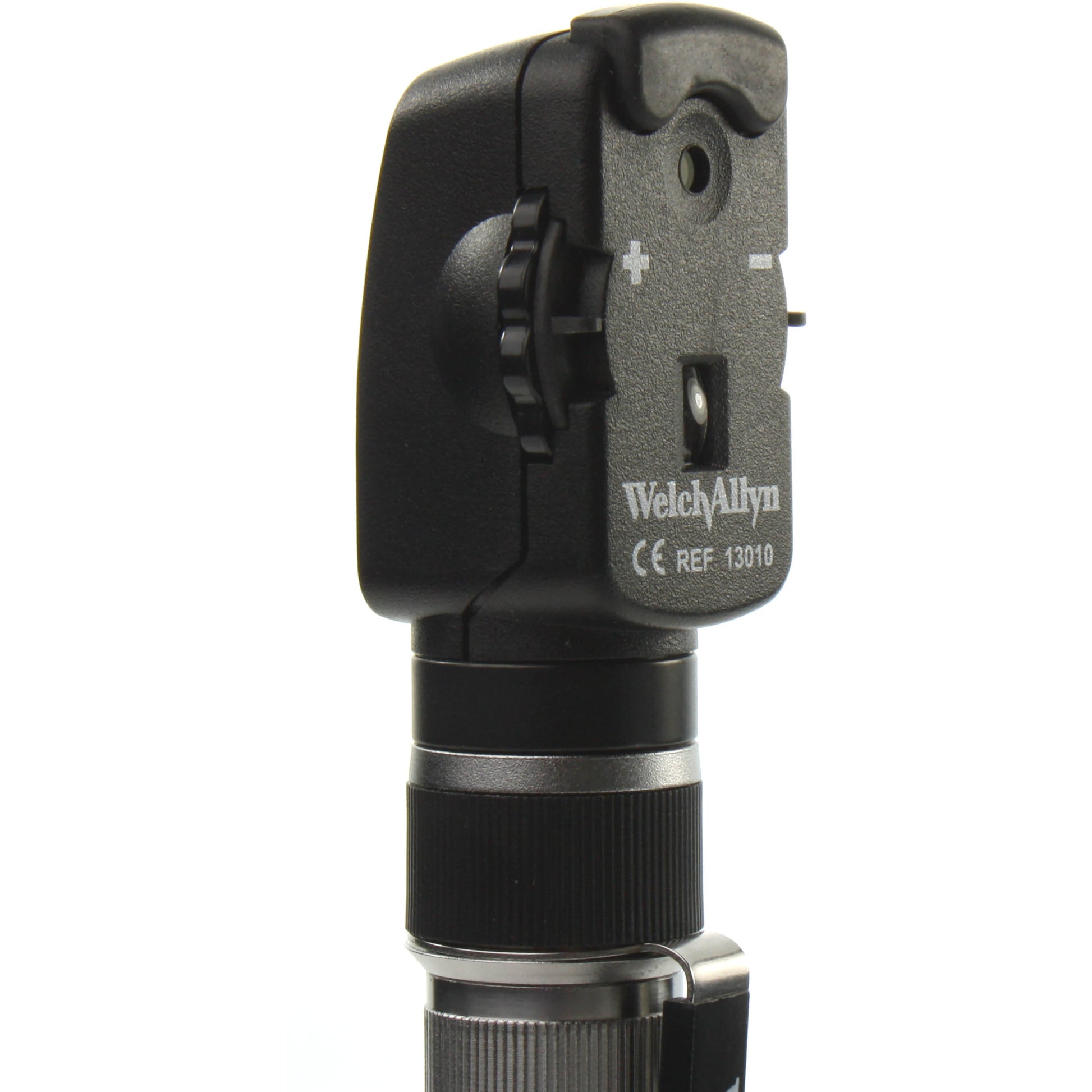

Halogen Pocket Ophthalmoscope

  • 6 apertures and 1 Filter:
    • MicroSmall - allows quick entry into small, undilated pupils.
    • MediumMedium - provides excellent view of fundus through an undilated pupil.
    • LargeLarge - general examination of the eye through dilated pupil.
    • FixationFixation Cross - cross-hairs for measuring eccentric fixation or locating lesions.
    • SlitSlit - used to determine levels of lesions and tumors.
    • Cobalt BlueCobalt Blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
    • Red FreeRed-Free Filter - filters out red light for easy identification of veins, arteries and nerve fibers.
  • 48 focusing lenses with a range of -20 to +20 diopters, adjustable via easy-to-reach maywheel.
  • Soft brow-rest suitable for use with spectacles.
welch allyn pocketscope with aperture selection
aperture selection disc

Switch easily between 6 apertures

welch allyn pocketscope with six apertures
Six Apertures

A wide range of practical apertures to select from.
welch allyn pocketscope with maywheel focus wheel
Maywheel Focus

Easy access on either side of the head to adjust the diopters.
welch allyn pocketscope with extra red-free filter to use with any aperture
Red-Free Filter

Red-free filter can be used in tandem with any aperture.


AA Battery Powered Handle

  • Smooth, nonabrasive knurled finish ensures a no-slip grip.
  • Chrome-plated brass construction for durability and reliable long-life.
  • Takes two AA batteries (not included).

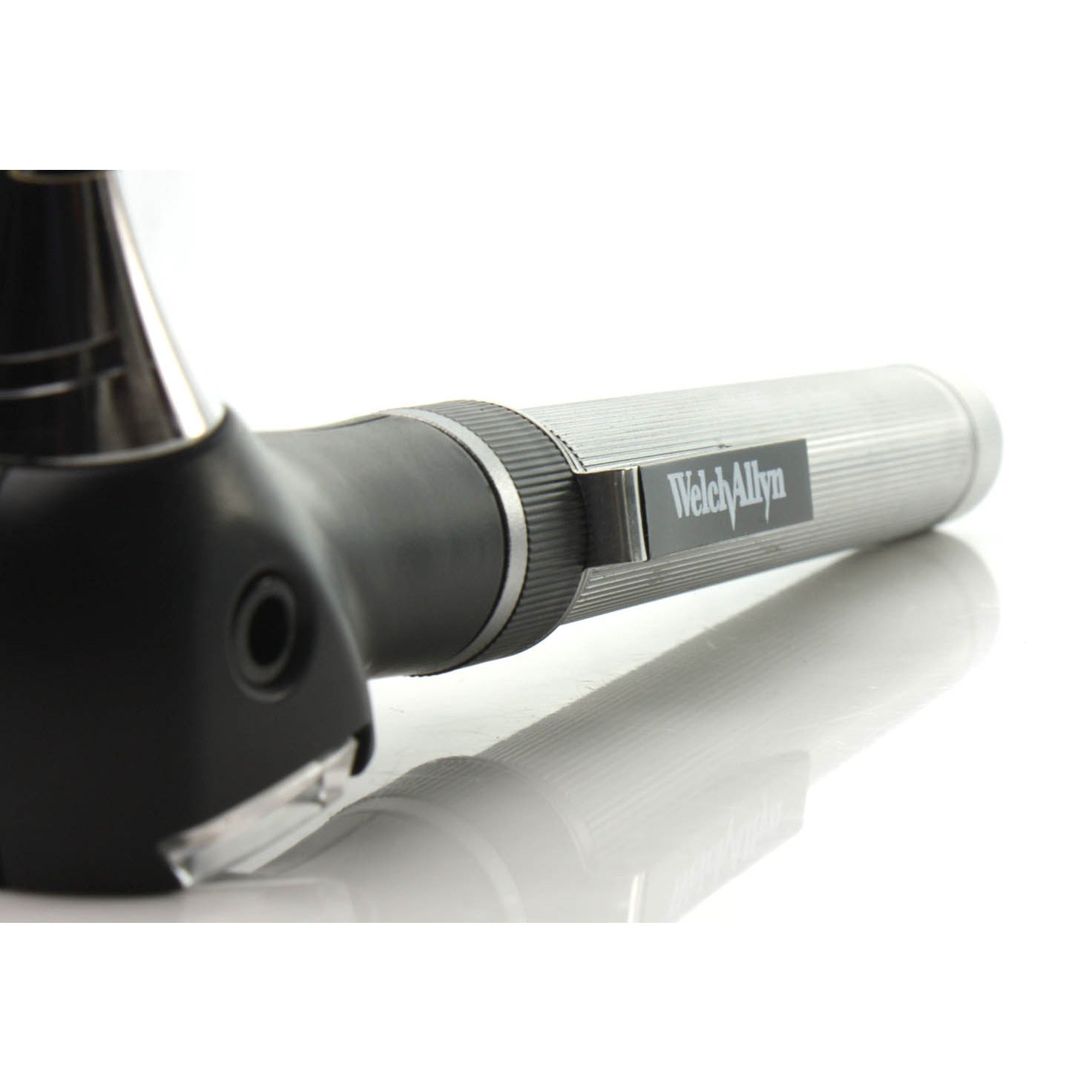

welch allyn pocketscope with pocket clip handle
Pocket Clip

Handy clip for attachment to pockets.
welch allyn pocketscope powered by AA batteries
Battery power

Powered by standard AA size alkaline batteries (nto included).

SKU:92830
