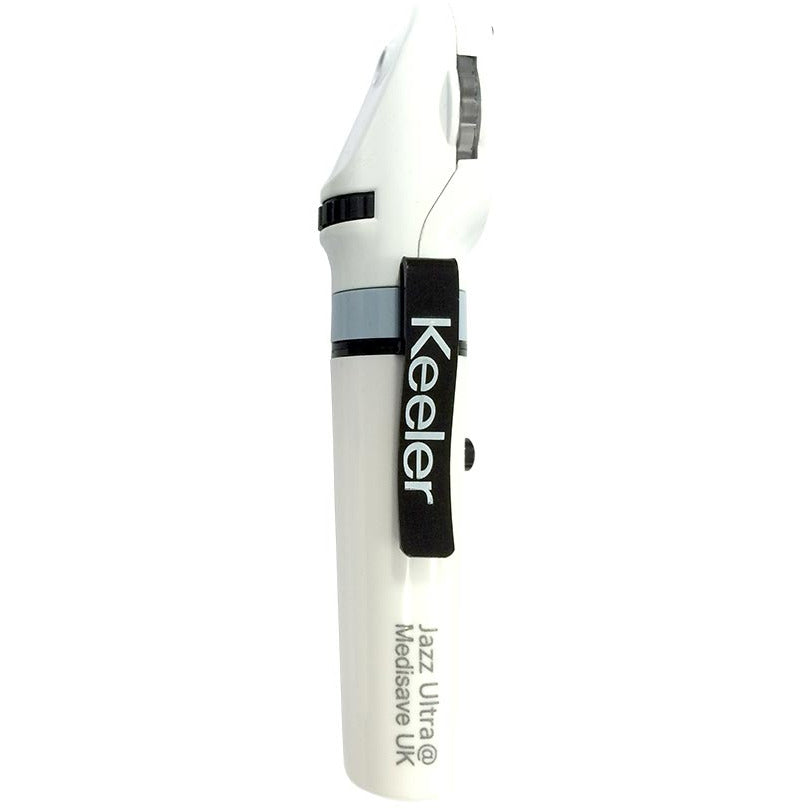

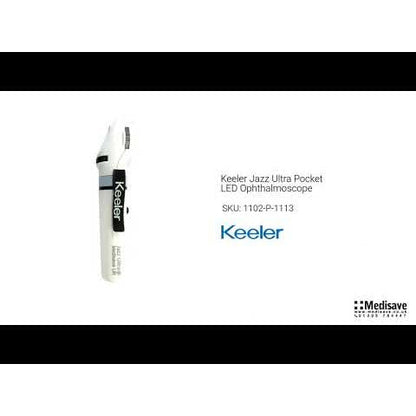

Keeler Jazz Ultra Pocket LED Ophthalmoscope

Keeler Jazz Ultra Ophthalmoscope

• 6 apertures:
  • Small - allows quick entry into small, undilated pupils.
  • Large - general examination of the eye through dilated pupil.
  • Fixation Star - graduated cross-hairs for measuring eccentric fixation or locating lesions.
  • Semi Circle - for a combination of depth perception and field of view.
  • Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
  • Red-Free - filters out red light for easy identification of veins, arteries and nerve fibers.
• 18 focusing lenses with a range of -20 to +20 diopters, adjustable via easy-to-reach maywheel.
• Soft brow-rest suitable for use with spectacles.
• Ultra efficient LED illumination for natural daylight colour.
• Ultra compact – Just 130mm in length.
• Ultra lightweight – just 130 grams.
• Renowned high performance Keeler optics with aspherical lens

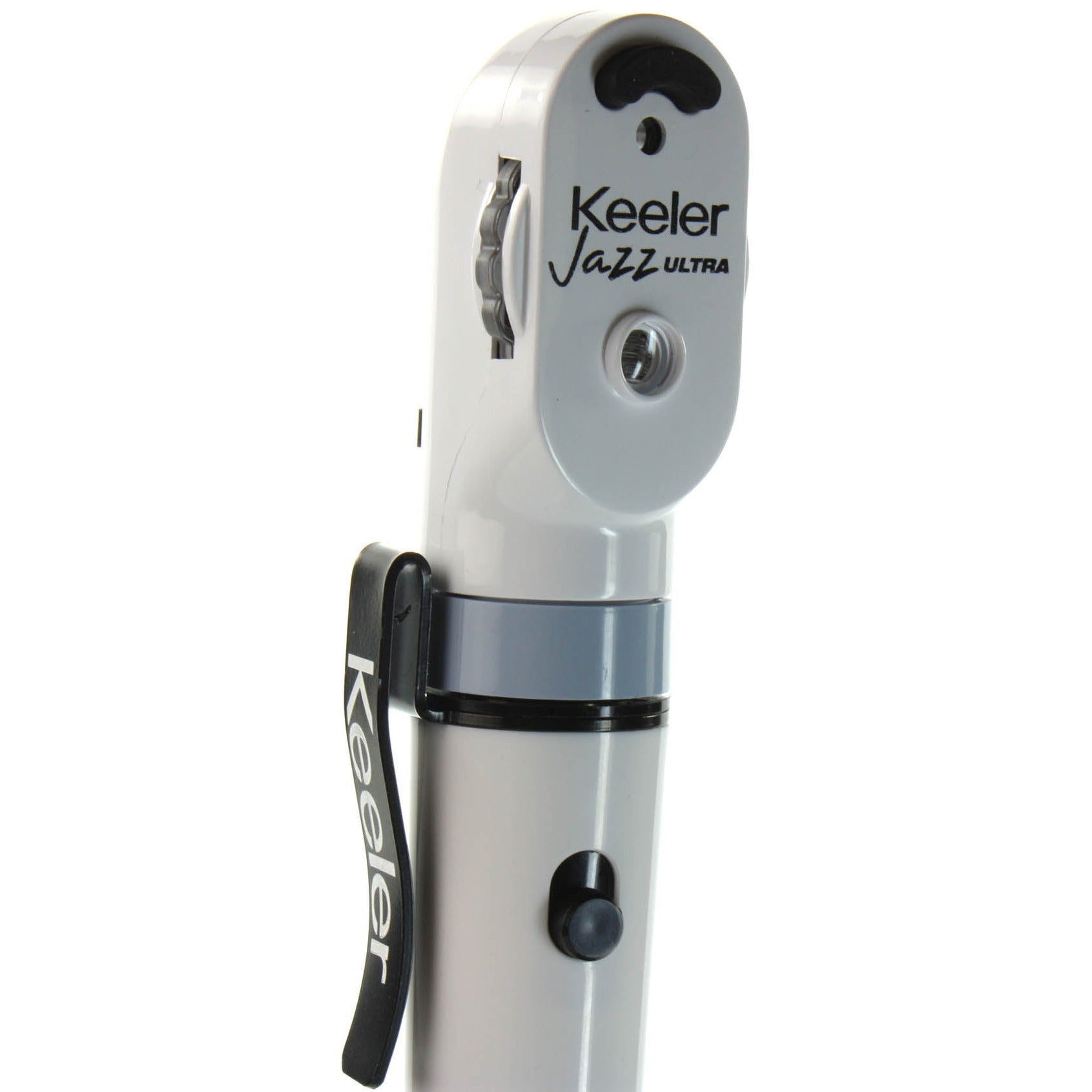

aperture selection disc
Switch easily between 6 apertures

Six Apertures
A wide range of practical apertures to select from.

Maywheel Focus
Easy access on either side of the head to adjust the diopters.

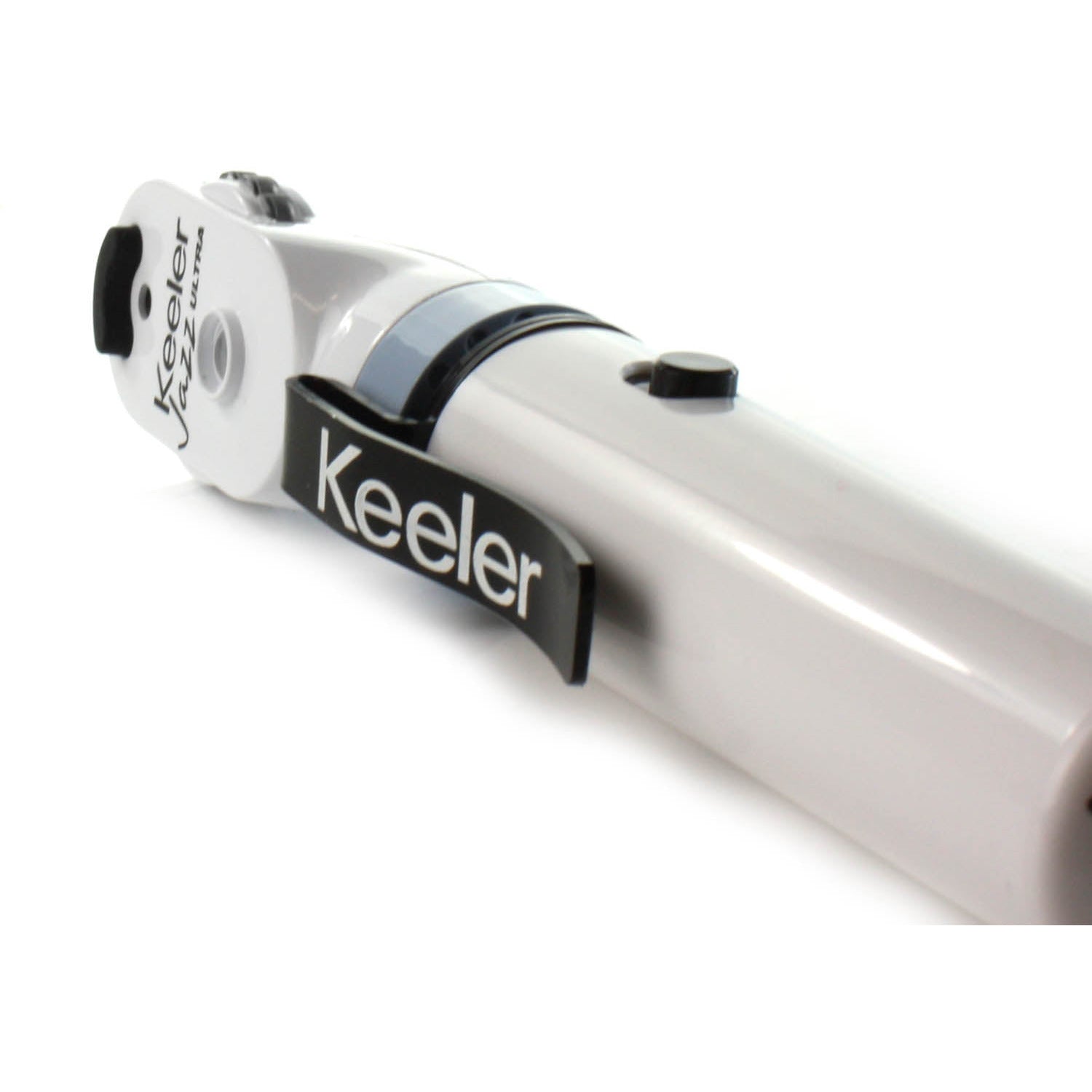

Interchangeable Rings
A choice of three coloured rings for personalisation.
