Acana Medical

HEINE mini3000 Ophthalmoscope/F.O Otoscope Diagnostic Set - Over Engraved

HEINE mini3000 Ophthalmoscope/F.O Otoscope Diagnostic Set - Over Engraved

£172.40
£272.99 £172.40
Sale Sold out

Our best-selling HEINE diagnostic set...

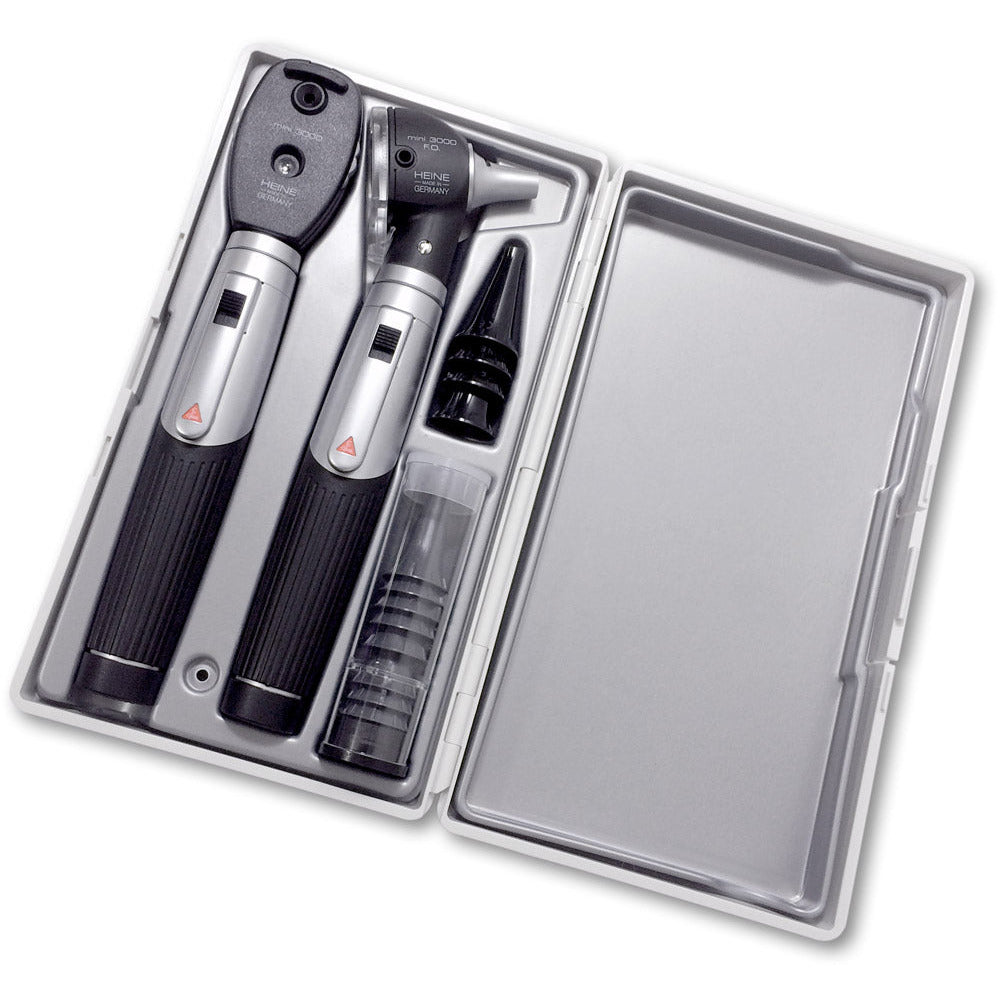

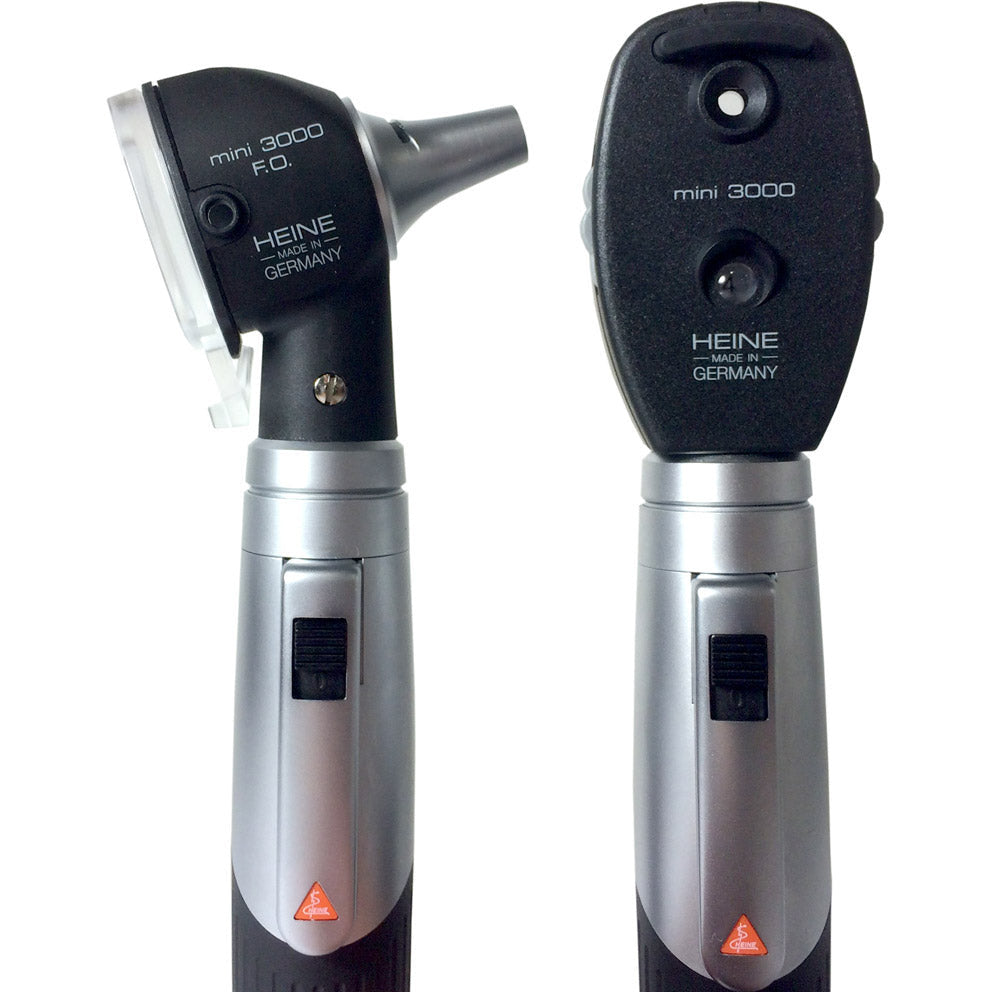

The set consists of:

  • 1x mini3000 fibre optic otoscope
  • 1x mini3000 ophthalmoscope
  • 2x C-Cell (AA) battery handles
  • 1x Hard carry case
  • 4 x Reusable specualae
  • Disposable speculae (5 x 2.5mm and 5 x 4mm)

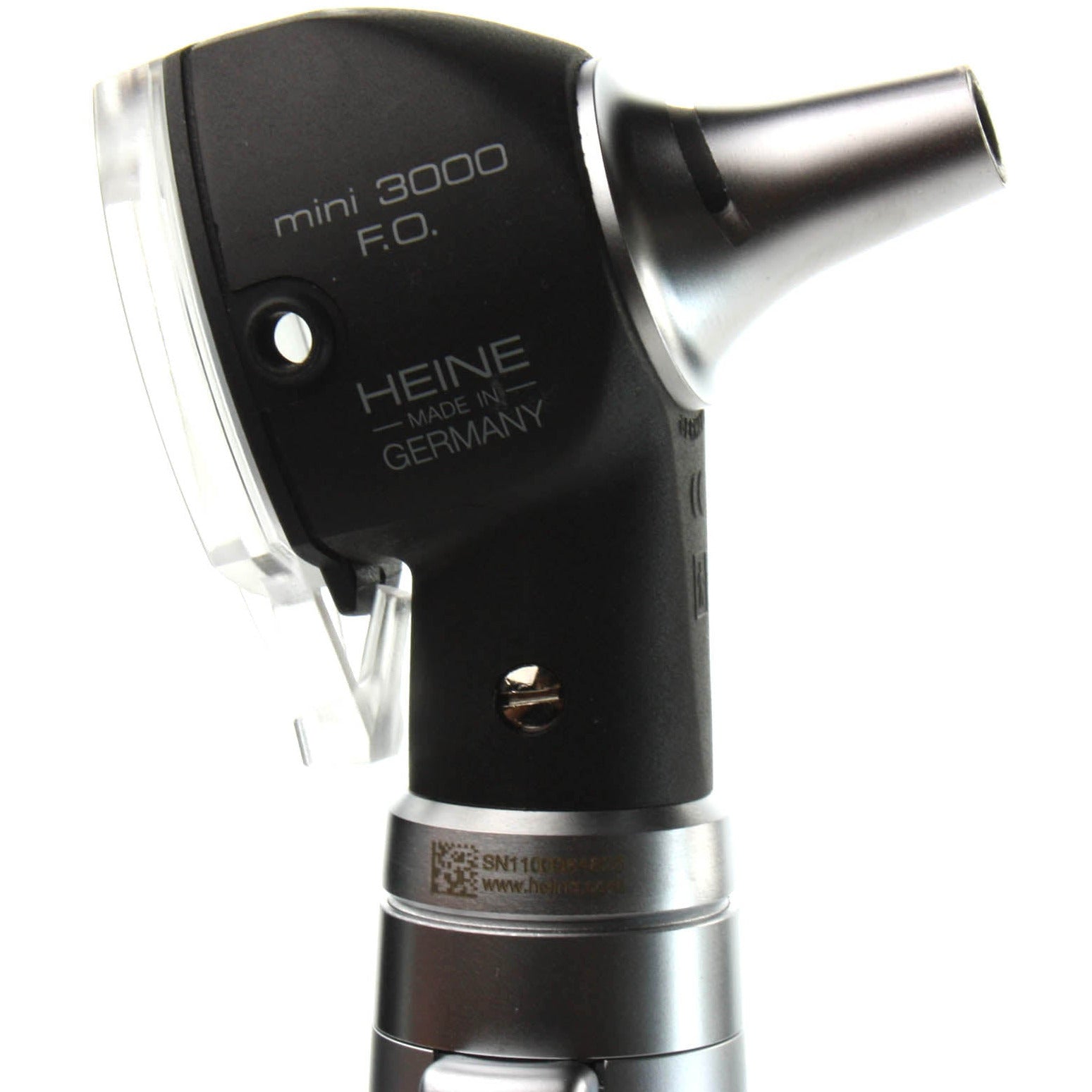

mini3000 | Compact Pocket Otoscope

  • A contemporary, precision engineered pocket otoscope.
  • XHL Xenon Halogen bulbs for accurate tissue colour and bright, clear illumination.
  • Quality build for longevity - 20,000 power cycles guaranteed.
  • Distal Fiber Optic Illumination for reflex-free viewing of the ear canal and tympanum.
  • Bulb situated away from the battery to keep cool and preserve battery life.
  • Easy clean swivelling viewing window.
  • 3x magnification lens.
  • Optimally engineered casing surface for the sharpest, reflection-free image.
  • Insufflation port (for optional connector) allowing pneumatic testing of the tympanic membrane.
  • Pocket clip with auto-off feature - switches off when returned to your pocket.
  • Complete with standard mini3000 handle, runs on standard AA batteries.
  • Award winning design - maximum quatiy / minimum dimensions.
HEINE otoscope with halogen and fibre optics
Halogen + Fibre Optics
Allows a completely unobstructed view in true tissue colour.
HEINE otoscope with swivelling window
Easy Clean
With swivelling lens for easy access.
HEINE otoscope with wide-angle viewing lens
Wide-angle Viewing Lens
With 3 x magnification.
HEINE otoscope with insufflation port for pneumatic otoscopy
Insufflation port
Attach an insufflation bulb for testing of the tympanic membrane via pneumatic otoscopy.

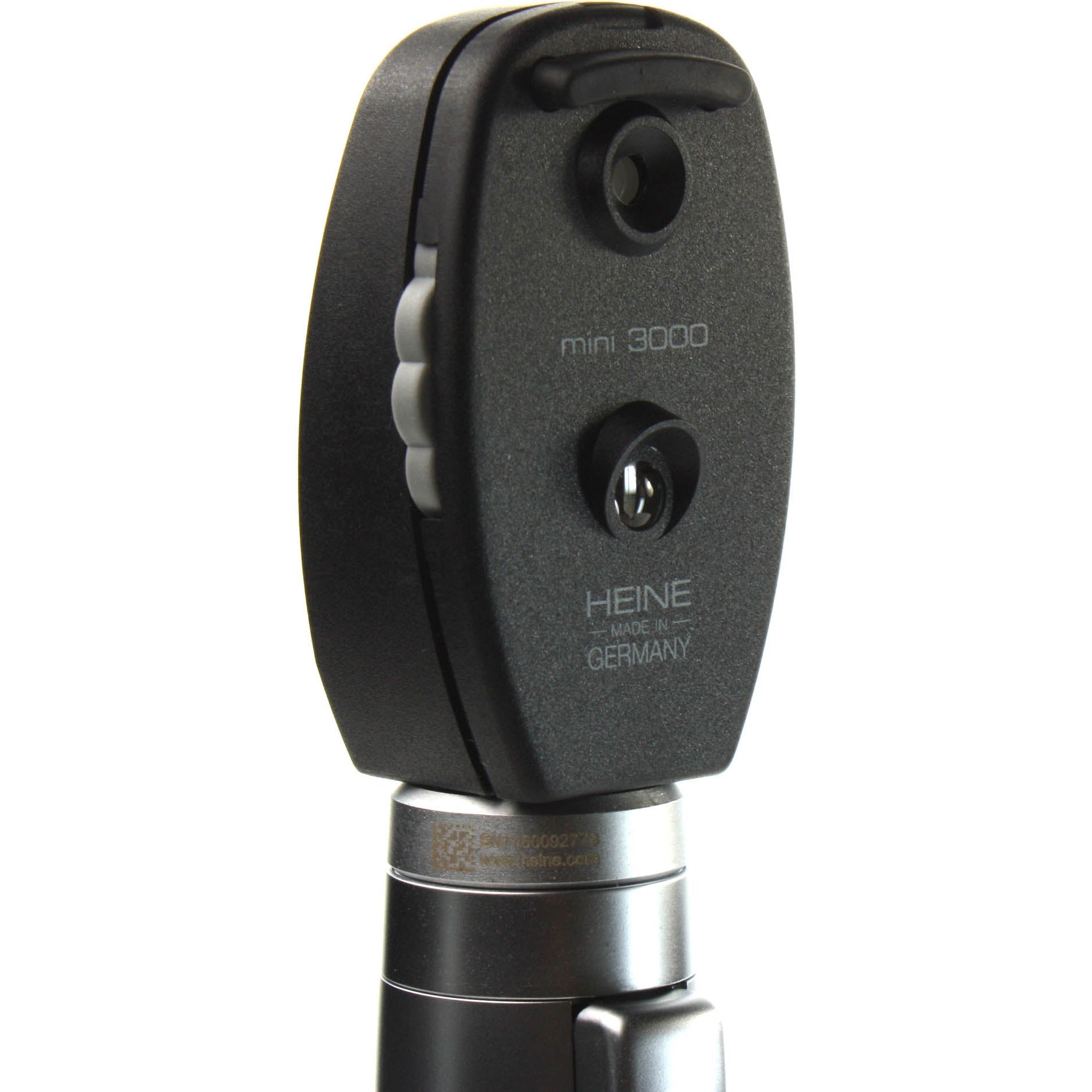

mini3000 | Compact Pocket Ophthalmoscope

  • A contemporary, precision engineered pocket ophthalmoscope.
  • XHL Xenon Halogen bulbs for accurate colour rendering and bright, clear illumination.
  • Precision HEINE optics produce excellent quality images of the entire area under examination.
  • 5 apertures:
    • MediumSmall - provides excellent view of fundus through an undilated pupil.
    • LargeLarge - general examination of the eye through dilated pupil.
    • FixationFixation Star - for measuring eccentric fixation or locating lesions.
    • HemispotHemispot - for a combination of depth perception and field of view.
    • Red FreeRed-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
  • 1 filters can be used in conjunction with any of the above apertures:
    • Grey filterGrey filter - for light sensitive patients.
  • 18 focusing lenses with a range of -20 to +20 diopters, adjustable via easy-to-reach maywheel.
  • Rubber brow-rest prevents scratching of eyeglasses.
HEINE ophthalmoscope with aperture selection disc
Aperture Selection Disc
Switch easily between 5 apertures via a disc on the head.
HEINE ophthalmoscope lens selection disc
LENS Selection Disc
Focus on the fundus, cornea, iris and other ocular structures.


mini3000 | AA Battery Powered Handle (x2)

  • Compact, stylish, ergonomically designed shape.
  • Shock-proof, non-slip, robust.
  • High quality engineered design in chrome finish.
  • Screw on end cap for easy battery change.
  • Pen style pocket clip with automatic power off when placed in pocket.
  • Guaranteed 20,000 on/off cycles.
  • Threaded metal connector for long life.
  • Compatible with the full range of mini3000 instruments.
  • Takes two standard AA size alkaline batteries (included).
  • Free laser engraving to the handle end.

Quality Engineering
All metal screw on connector.

Simple operation
20,000 power cycles guaranteed.

FREE SERVICE | HIGH QUALITY | NO DELAY | NEXT DAY DELIVERY


mini3000 | Hard Carry Case

  • Vacuum formed interior to keep instruments in place

More information: Using Ophthalmoscopes in Eye Examinations | Using Otoscopes in Ear Examinations

D-873.11.021/OE
